Sundial 923
- Dial City: Lansing
- Dial State/Province: Michigan
- Dial Country: USA
- Lat: 42° 43.941' N
- Dial Nr: 923
- Dial Type: Vertical Dial
- Dial Access: Public
- Lon: 84° 32.939' W
- Dial Owner: Impression 5 Science Center
- Dial Designer: Tom Goodman, Cyrus Miller, Kevin Tracy
- Dial Maker: Impression 5 Exhibits Staff
- Dial Date: September 2018
- Location:
- Impression 5 Science Center 200 Museum Dr. Lansing, MI 48933 Dial on the south side of the blue concrete wall.
- Description:

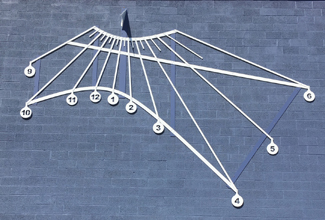

- This is a vertical, east-declining sundial, 22 ft 6 in by 15 ft 10 in. The dial is constructed of 6061 aluminum alloy pieces electrostatically painted and bolted together,then mounted on a concrete block wall. The position of the gnomon, hour, solstice, and equinoctial lines are corrected for longitude to show time zone solar time. Stenciled hour line numbers are changed to display DST or EST at appropriate times of the year. Visitors can determine the correct time by referring to an Equation of Time display. During the year, the triangular gnomon tip casts its shadow on the declination lines of summer and winter solstices and equinoxes. This is the largest known vertical sundial in Michigan, and one of the largest in the United States.
- Dial References:
Reading_the_Sundial.pdf
Last Update:
2018-10-04 23:31
